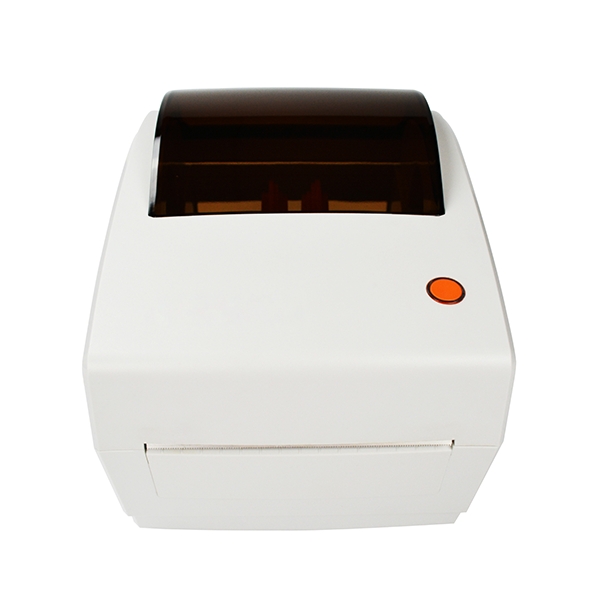

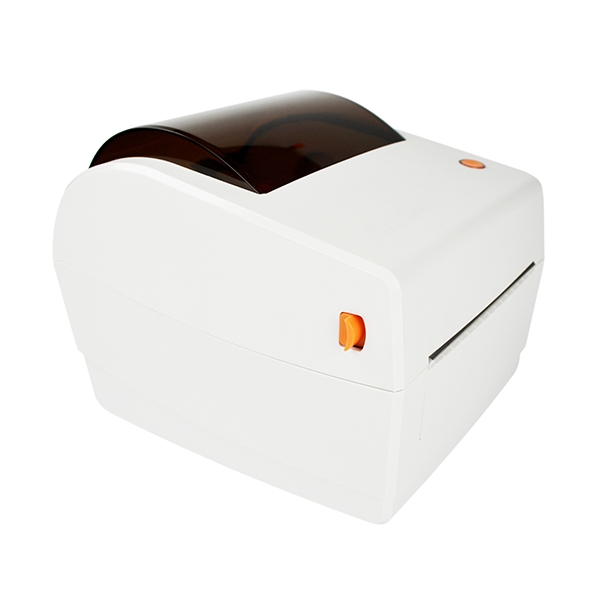

Type Label barcode Printer
|
Label barcode Printer
|
|
Printing
|
Resolution
|
203dpi
|
|
Printing method
|
Direct Thermal
|
|
Printing speed
|
127mm/s (5inch/s)- 150mm/s optional
|
|
Max printing width
|
104mm (4.09' )
|
|
Max printing Length
|
300mm (11.81' )
|
|
Interface
|
USB
|
|
|
Print head (abrasive resistance)
|
150km
|
|
|
Commands
|
TSC
|
Media
|
Max Media Roll OD
|
130mm (5.12" )
|
|
Min Media Roll ID
|
24mm (others available with external rear bracket)
|
|
Media Paper Type
|
Continuous Paper, Label Paper, Black Mark Paper
|
|
Media width
|
Max 120mm (4.72"), Min: 26.7mm (1.05")
|
|
Media Gap
|
Max.100mm
|
|
Label Length
|
20mm~300mm
|
|
Accessories
|
Power Apdater, Power Cord, USB Cable, CD, Manual.
External Rear Bracket (Optional)
|
|
Software
|
Editing Software
|
Nicelabel SE
|
|
Driver
|
XP、Win7、Win8、Windows 10
|
|
Character font
|
Character Set
|
GB18030 (Simplified Chinese)
|
|
Print font
|
ASCII Font A: 12*24
ASCII Font B: 9*24
Chinese: 24*24
|
|
Barcode type
|
1D code
|
Code39, Code93, Code128, ITF, ITF14, subsets A, B, C, Codabar, EAN-8, EAN-13,EAN-14, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits, add-on, MSI, MSIC, PLESSEY, CPOST
|
|
2D code
|
QR code
|
|
Picture format
|
Graphics processing
|
Support BMP/PCX/BAS
|
Environment
Specification
|
Temperature
|
Working: 0-50°C, Storage: -20~70°C
|
|
Humidity
|
Working : 20%~85% ; Storage: 5%~95%
|
|
Power supply
|
DC24V/2.5A
|
|
RAM/Flash
|
8MB/4M
|
|
Dimension
|
217*182*172mm
|
|
Printer weight
|
1.4kg
|
|
|
