Barcode scanner gun LS20 1D
  • Barcode scanner gun LS20 1D
  • Barcode scanner gun LS20 1D
  • Barcode scanner gun LS20 1D
  • Barcode scanner gun LS20 1D

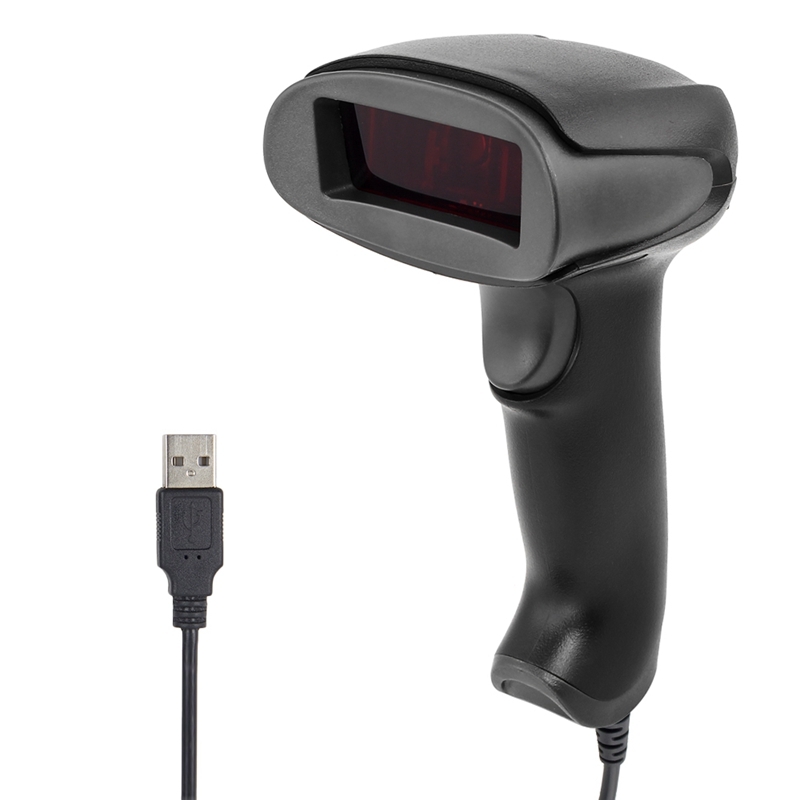

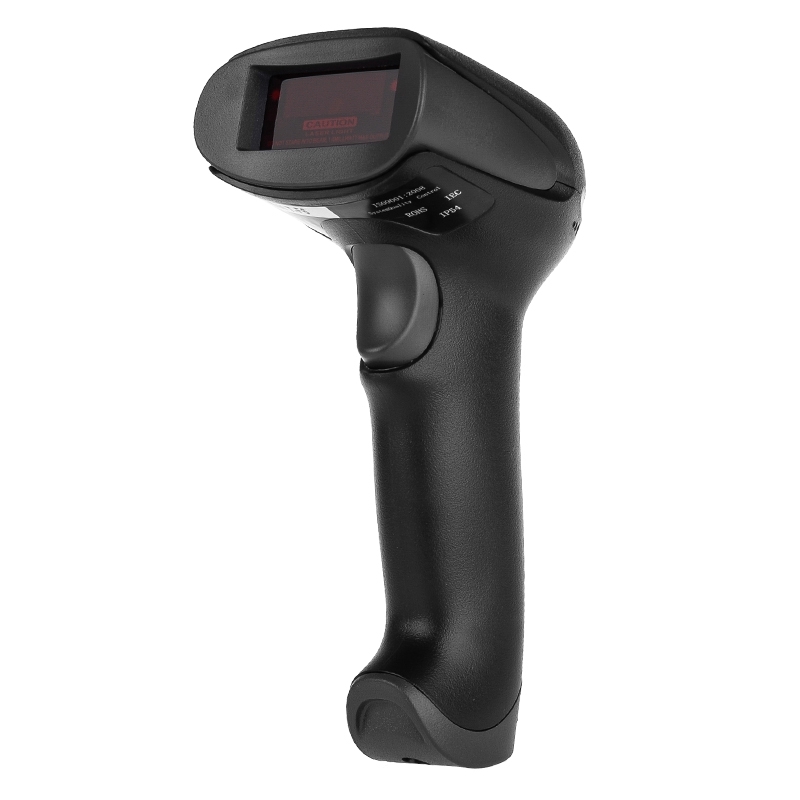

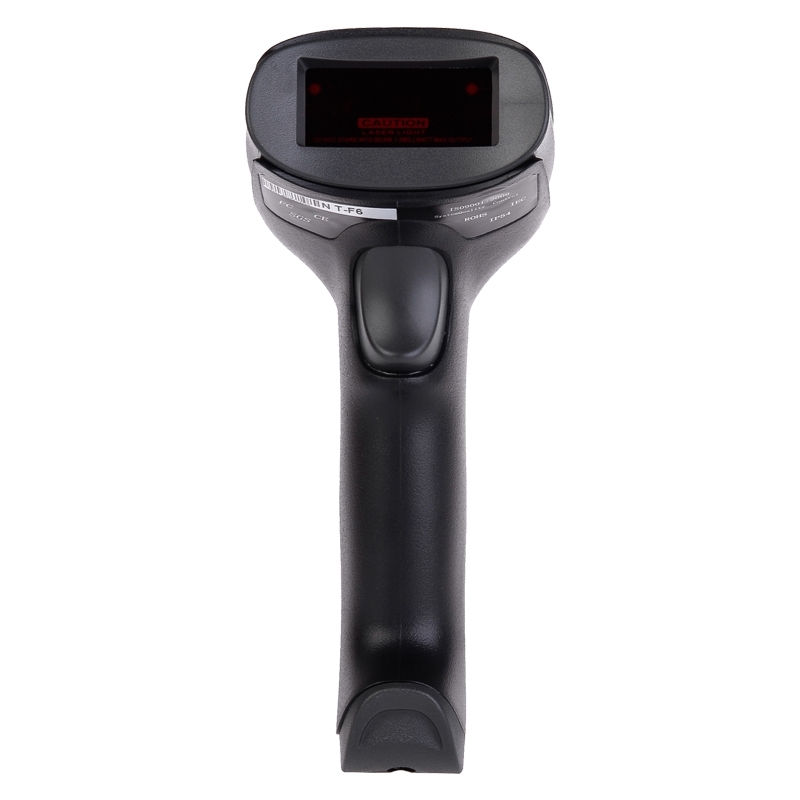

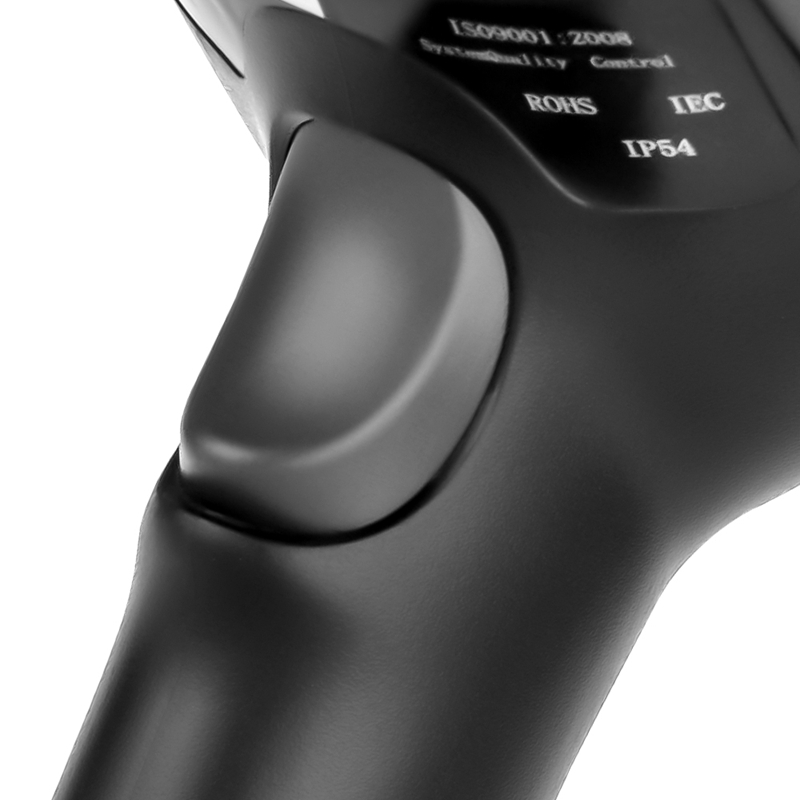

Barcode scanner gun LS20 1D

Cheapest and stable scanning 1D wired CCD barcode scanner gun
Detailed description

Feature

Light Resource

C C D (Safe visible light)

Port/Interface

USB (standard), RS232 (optional)

Supported Symbologies

EAN-8, EAN-13, Codabar,  CODE11CODE 39, CODE 93, CODE128, China Post, GS1-128,  GS1 Limited, GS1 Omnidirectional,  UPC-A, UPC-E, ISBN/ISSN, ISBT , Interleaved 2 of 5Matrix 2 of 5Industrial 2 of 5 , MSIPlessey, ITF14

Presicion

5 mil

Depth of scan field

Code 39:120mm-160mm(0.127mm 5mil)

Code 39:110mm-400mm(0.5mm 20mil)

Code 39:260mm-420mm(1.0mm 40mil)

UPC/EAN 13:120mm-200mm(0.33mm 14mil)

Resolution

1500

Decode speed

200 times/ second

Decode Error Rate

less than 1/8 million

Print Contrast Signal

10°

Scan Angle

Yaw(Skew) 60°   Pitch 60°

Mechanical/ Electrical

Voltage

5VDC ±5%

Current

Maximum current :130mA

Environmetal

Operating temperature

0°C~+50°C

Storage temperature

20°C~70°C

Humidity

5%-95%
