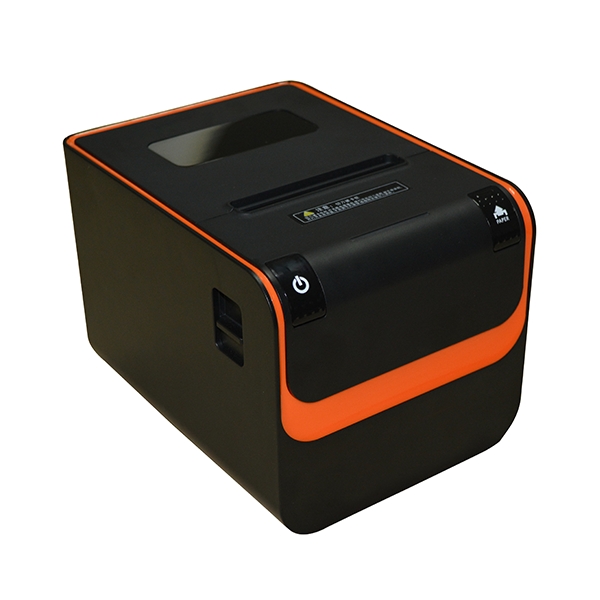

Type Thermal Printer
|
Thermal printer
|
|
Print
|
Printing Method
|
Thermal Line
|
|
Printing Speed
|
250mm/s
|
Resolution
|
8 dots/mm, 576 dots/line
|
|
Effective Printing Width
|
72mm
|
|
Character
|
Character Set
|
ANK,GB18030(Chinese)
|
|
Print Font
|
ANK: 12 x24,9x17, Chinese: 24 x 24
|
|
Character per Line
|
48-font A/64-font B
|
|
Paper Spec
|
Paper Type
|
Thermal paper
|
|
Paper Width
|
79.5± 0.5mm
|
|
Paper Roll Diameter
|
Max: 80.0mm
|
|
Roll Core Inner Diameter
|
13mm(min.)
|
|
Paper Thickness
|
0.06 to 0.07mm
|
|
Paper Supply Method
|
Drop-in paper load
|
|
Reliability
|
MCBF
|
60 million lines
|
|
Auto Cutter
|
500,000 cuts
|
|
TPH
|
100km
|
|
Barcodes
|
UPC-A，UPC-C，EAN-13，EAN-8，CODE39，ITF，CODEBAR，CODE93，CODE128
|
|
Emulation
|
ESC/POS
|
|
Driver
|
Windows2000/XP/7/VISTA
|
|
Sensor
|
Paper Near End Sensor, Paper End Sensor
|
|
Drawer Port
|
1 Port
|
|
Interface
|
RS-232, Parallel, USB, Ethernet
|
|
Power Supply (Adapter)
|
AC100 ~240V(± 10%) DC 24V, 2A
|
Auto cutter
|
Type
|
Guillotine
|
|
Life
|
1,000,000 cuts
|
|
Physical
|
Net Weight
|
1.3kg
|
|
Gross Weight
|
2.8kg
|
|
Printer Dimension (WxLxH)
|
145 x 195x 148 mm
|
|
Application
|
Restaurants, Department Stores, Kitchen, Convenience Stores, Specialty Retail, Super market
|
|
|
