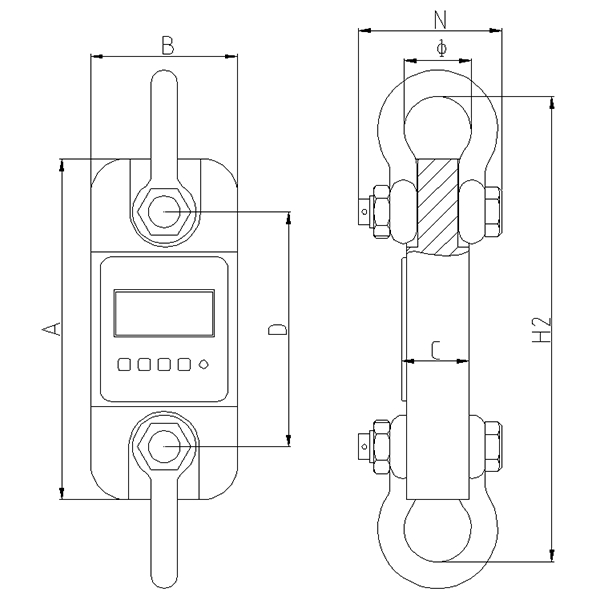

MODEL |
CAP |
Div |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
φ(mm) |
H(mm) |
Material |
DL-W1-1 |
1t |
0.5kg |
245 |
112 |
37 |
190 |
43 |
335 |
Aluminum |
DL-W1-2 |
2t |
1kg |
260 |
123 |
37 |
195 |
51 |
365 |
Aluminum |
DL-W1-3 |
3t |
1kg |
260 |
123 |
37 |
195 |
51 |
365 |
Aluminum |
DL-W1-5 |
5t |
2kg |
285 |
123 |
57 |
210 |
58 |
405 |
Aluminum |
DL-W1-10 |
10t |
5kg |
320 |
120 |
57 |
230 |
92 |
535 |
Alloy Steel |
DL-W1-20 |
20t |
10kg |
375 |
128 |
74 |
260 |
127 |
660 |
Alloy Steel |
DL-W1-30 |
30 |
10kg |
420 |
138 |
82 |
280 |
146 |
740 |
Alloy Steel |
DL-W1-50 |
50t |
20kg |
465 |
150 |
104 |
305 |
184 |
930 |
Alloy Steel |
DL-W1-100 |
100t |
50kg |
570 |
190 |
132 |
366 |
229 |
1230 |
Alloy Steel |
DL-W1-200 |
200t |
100kg |
720 |
265 |
183 |
440 |
280 |
1362 |
Alloy Steel |

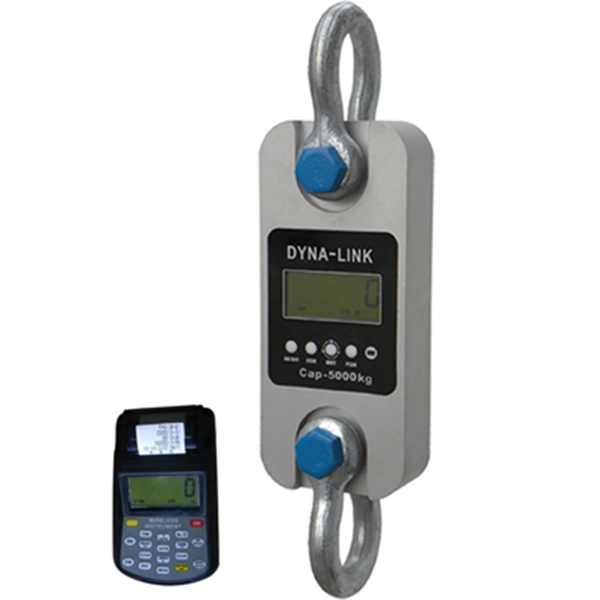

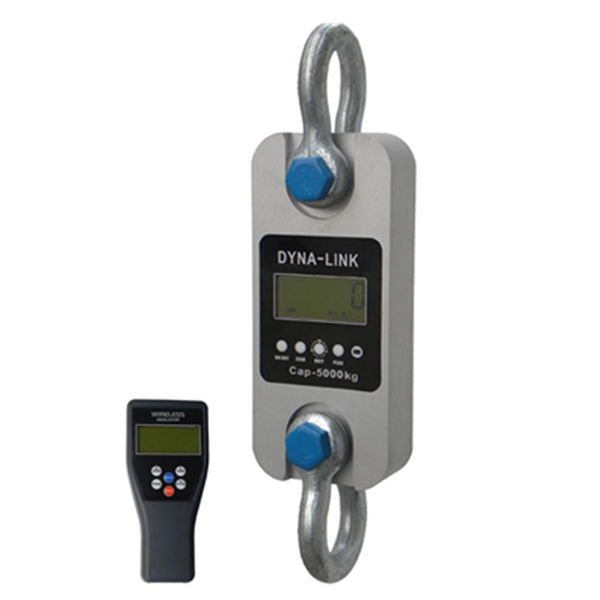

Product Description:
Item No.
DL-W1
Display
LCD Display
Body Protection
Aluminum and alloy steel capacities are powder coated
Accuracy
0.05% for 1-50t, 0.1% for above 50t capacity.
Units
Units are clearly display on the screen, available in the following measurment reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).
Shackles
High tension industrial standard G2130 anchor shackle bows, galvanized finish
Functions
wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User calibration(with password).
Set-Point
Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
Package
Packed with carry case, easy to bring.
Dynamometer Key
4 local mechanical keys:”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”
