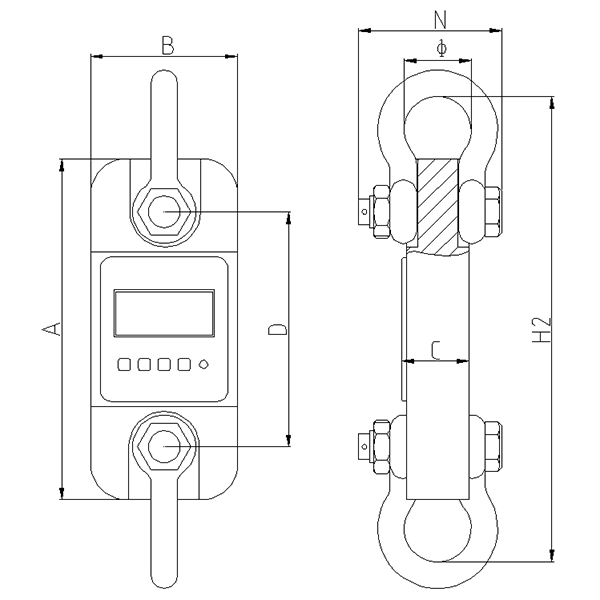

MODEL
CAP
Div
A(mm)
B(mm)
C(mm)
D(mm)
φ(mm)
H(mm)
Material
DL-R-1
1t
0.5kg
245
112
37
190
43
335
Aluminum
DL-R-2
2t
1kg
260
123
37
195
51
365
Aluminum
DL-R-3
3t
1kg
260
123
37
195
51
365
Aluminum
DL-R-5
5t
2kg
285
123
57
210
58
405
Aluminum
DL-R-10
10t
5kg
320
120
57
230
92
535
Alloy Steel
DL-R-20
20t
10kg
375
128
74
260
127
660
Alloy Steel
DL-R-30
30
10kg
420
138
82
280
146
740
Alloy Steel
DL-R-50
50t
20kg
465
150
104
305
184
930
Alloy Steel
DL-R-100
100t
50kg
570
190
132
366
229
1230
Alloy Steel
DL-R-200
200t
100kg
720
265
183
440
280
1362
Alloy Steel
Product Details: | |
Type | Hang scale, Digital scale |
Units |
kg, t, lb, kN |
Display |
LCD Display with backlight |
Power supply |
3pcs AA size alkaline batteries, 50 hours radio continuous using |
Packing | Packed with carry case, easy to bring. G.W: 2.7 |
Product Description: | |
Item No. | DL-R-5 |
Display | 25mm (1″) 5digits LCD with backlight for easy distant viewing. |
Body Protection | Aluminum and alloy steel capacities are powder coated. |
Accuracy | 0.05% for 1-50t, 0.1% for above 50t capacity. |
Units | Available in the following measurment reading:kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN) |
Battery | 3pcs AA size alkaline batteries, 50 hours radio continuous using |
Shackles | High tension industrial standard G2130 anchor shackle bows, galvanized finish |
Ultimate Load | 400% of capacity. |
Opertation temperature | -20℃ to 50℃ |
Gravity Regulation | The acceleration of gravity can be regulated through red infrared remote controller according to different places value. |
Functions |
Zero, tare, Low battery warnings, peak hold, overload warning. User calibration through red infrared remote controller |
Package | Packed with carry case, easy to bring. |
